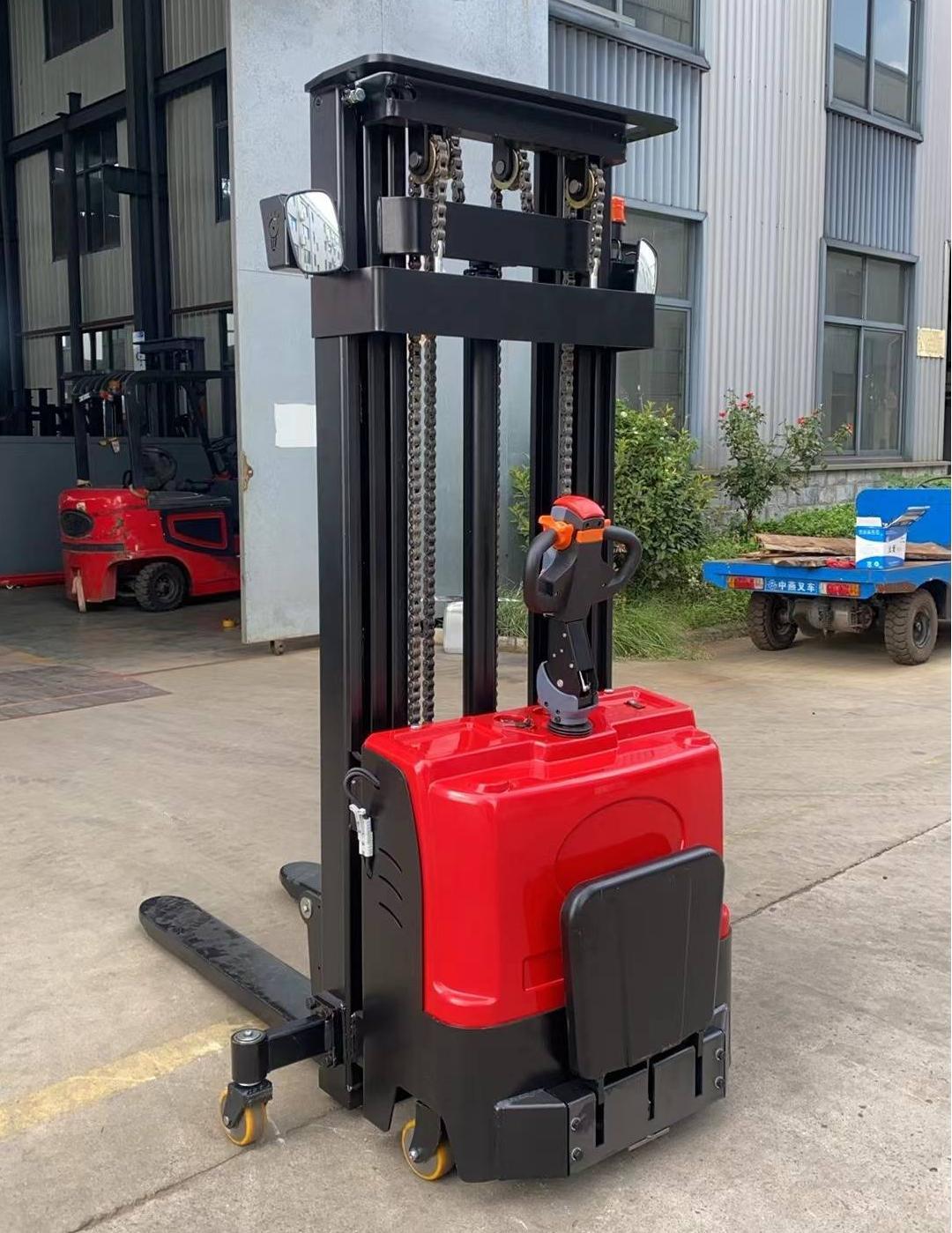

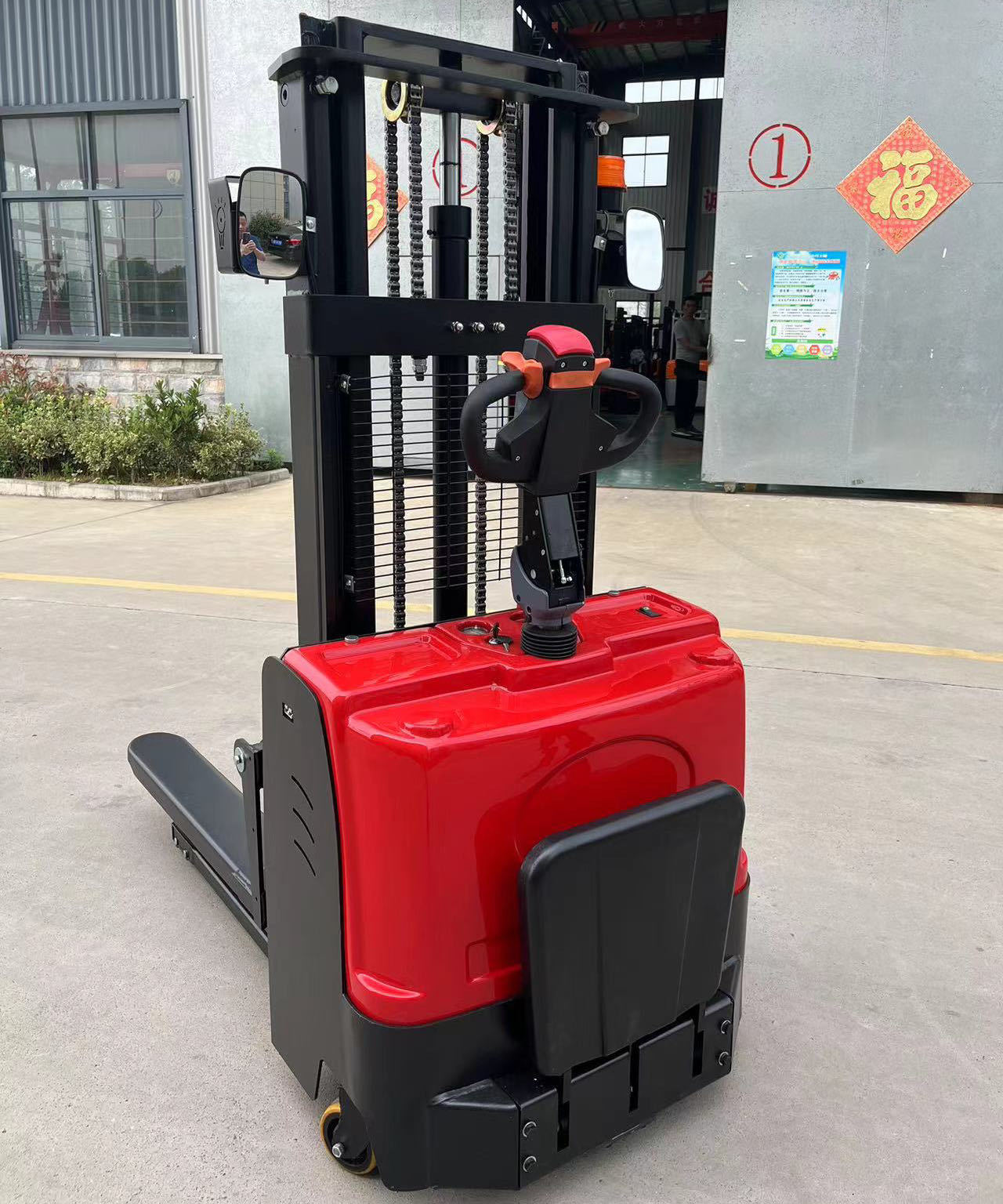

1 Ton Electric Pallet Stacker with 24V 80Ah Battery & 1070mm Fork

Informacion basica

Lugar de origen:	Jiangsu, China, NC; JIA
Nombre de la marca:	KAD

Cantidad de orden mínima:	10
Precio:	$500

Mejor precio Contactar ahora

Longitud de la bifurcación:	1070 mm	Anchura de la bifurcación:	Las demás:
Tipo de conducción:	ADELANTE	Tipo de neumático:	Rueda de la PU
Centro de carga:	500 mm	Radio de giro:	Las demás partidas
Peso:	550 kg	Dimensiones generales:	El valor de las emisiones de gases de efecto invernadero es el valor de las emisiones de gases de ef
Batería:	Las demás:	Fuente de energía:	Motor DC
Capacidad de carga:	1 tonelada	Altura de elevación:	1600 mm
Distancia al suelo:	130 mm	conducción de velocidad:	4km/h
Pendiente:	10°
Resaltar:	1 ton electric pallet stacker , 24V electric pallet stacker , 1070mm fork pallet stacker

KAD Full Electric Platform Pedal Ride on Stacker 1ton 1.5ton 2ton 3m 4.5m Europe/US Pallet Standard with Compact Design

Product Overview

Full electric stackers are designed for loading, stacking, and short-distance palletizing of goods. Featuring a simple structure and flexible operation, they offer excellent micro-operability and high safety performance. Ideal for operations in narrow passages and limited spaces, these stackers can enter ship cabins, carriages, and containers for efficient loading, unloading, and handling of palletized goods.

Key Features

AC drive motor with no carbon brushes for maintenance-free operation and reduced costs
Vertical drive motor design for easier inspection and superior performance compared to horizontal motors
Integrated micro-switches for simple replacement
Easy-access battery cover for convenient maintenance
Display with hour meter and battery status indicator for timely charging
Controller self-diagnosis system for easier troubleshooting
Side-positioned drive system for stability
Strong caster wheels for durability

Technical Specifications

Attribute	Value
Condition	New
Fork Length	1070mm
Fork Width	550/680mm
Drive Type	FWD
Applicable Industries	Hotels, garment shops, building material shops, manufacturing plants, food & beverage factories, farms, restaurants, retail, and more
Terrain Adaptability	Indoor flooring, outdoor pavement
Type	Powered Pallet Truck, Stacker Forklift
Color	Green/Red/Yellow/Customized
Tire	PU Wheel
Load Center	500mm
Turning Radius	1738/2099mm
Warranty	1 Year
Weight	550kg
Overall Dimensions	2130(L)850(W)2080mm(H)
Battery	24V/80Ah
Power Source	DC Motor
Load Capacity	1 ton

Model Specifications

Model	CDD1030	CDD1530
Load Capacity (kg)	1000	1500
Lifting Height (mm)	1600	1600
Load Center (mm)	500	500
Fork Size (mm)	122010040	122010040
Ground Clearance (mm)	130	130
Driving Speed with Full Loads (km/h)	4	4
Battery (V/Ah)	24V/80A	24V/80A
Overall Size (mm)	217015702100	217015702100
Weight (kg)	900	900
Reference Working Time (h)	6	6

Machine Components

Control Handle

Features a sensitive control system for precise operation of lifting and movement functions.

Operation Panel

Combined with key controls, battery indicator, and emergency switch for intuitive operation and safety.

Lifting Mechanism

Features strong cylinder and chain system for smooth fork operation with optional 1-stage, 2-stage, or 3-stage mast configurations.

Frequently Asked Questions

Q: What is your terms of packing?

A: Generally, we pack our goods in paper package and iron pallet. We can pack the goods in your branded boxes after getting your authorization letters.

Q: What is your terms of payment?

A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.

Q: What is your terms of delivery?

A: EXW, FOB, CFR, CIF, DDU.

Q: How about your delivery time?

A: Generally, it will take 5 to 30 days after receiving your deposit. The specific delivery time depends on the items and the quantity of your order.

Q: Do you test all your goods before delivery?

A: Yes, we perform 100% testing before delivery.
