KAD Customized Electric Pallet Stacker with 850mm Fork Width 1738/2099mm Turning Radius and 500mm Load Center

Informacion basica

Cantidad de orden mínima:	1
Precio:	2885

Mejor precio Contactar ahora

Modelo No.:	CDD1516	Capacidad de carga:	1 a 1,5 t
Centro de carga:	500 mm	Altura de elevación:	1600 mm
Capacidad de batería:	24v/210Ah	Anchura de la bifurcación:	850 mm
Radio de giro:	Las demás partidas	Longitud de la bifurcación:	1070 mm
Peso bruto:	1000.000 kg	Motor de conducción:	1.2kw
Motor de elevación:	2.2kw	Tipo de neumático:	Poliuretano
conducción de velocidad:	4km/h	Tamaño general:	217015702100mm
Distancia al suelo:	30 mm
Resaltar:	850mm Fork Width Electric Pallet Stacker , 1738/2099mm Turning Radius Pallet Stacker , 500mm Load Center Electric Forklift

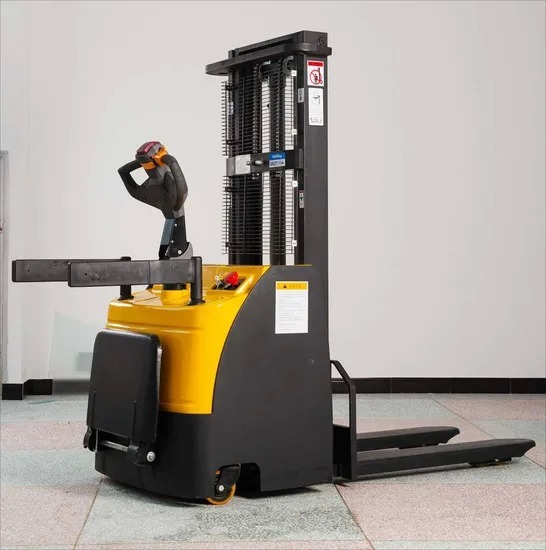

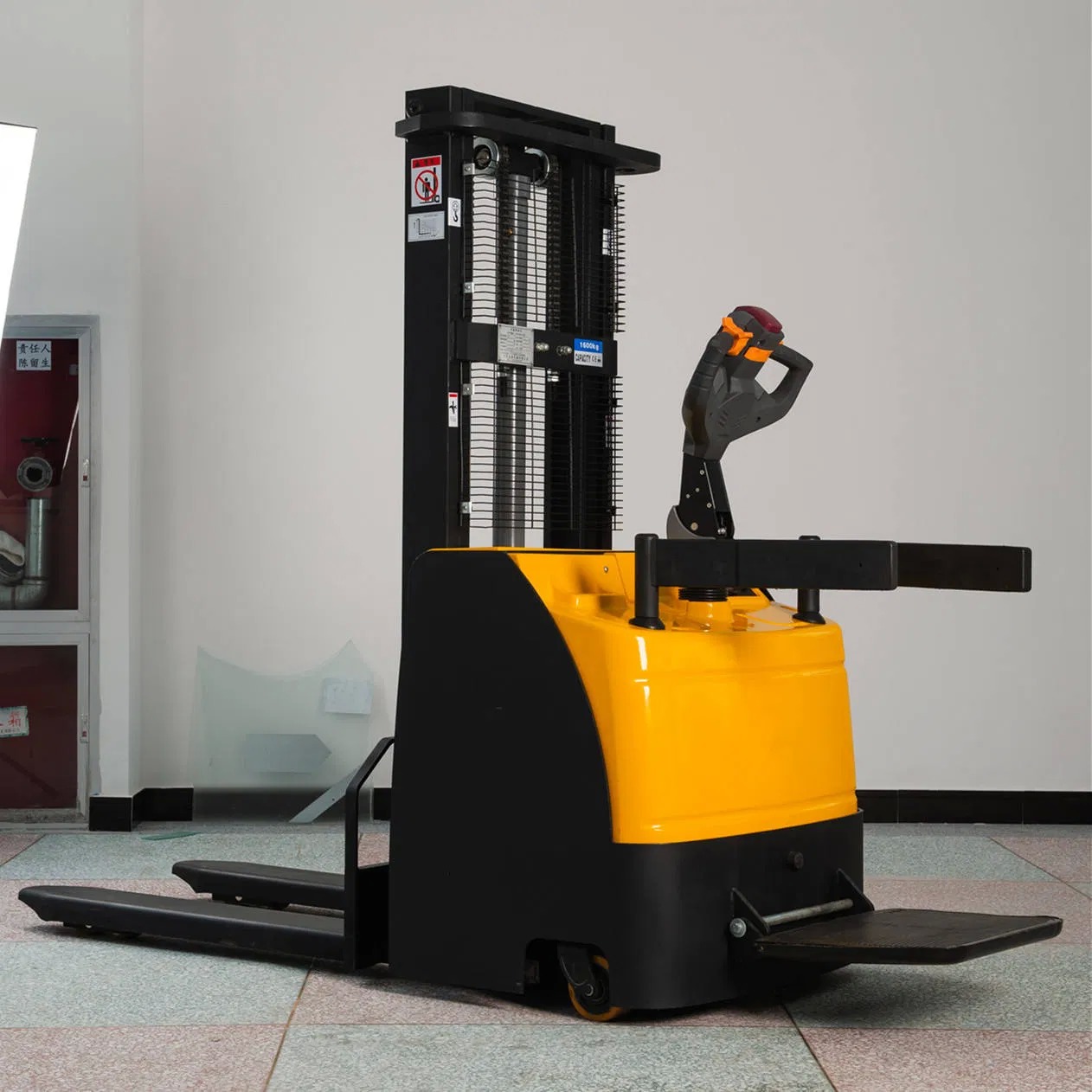

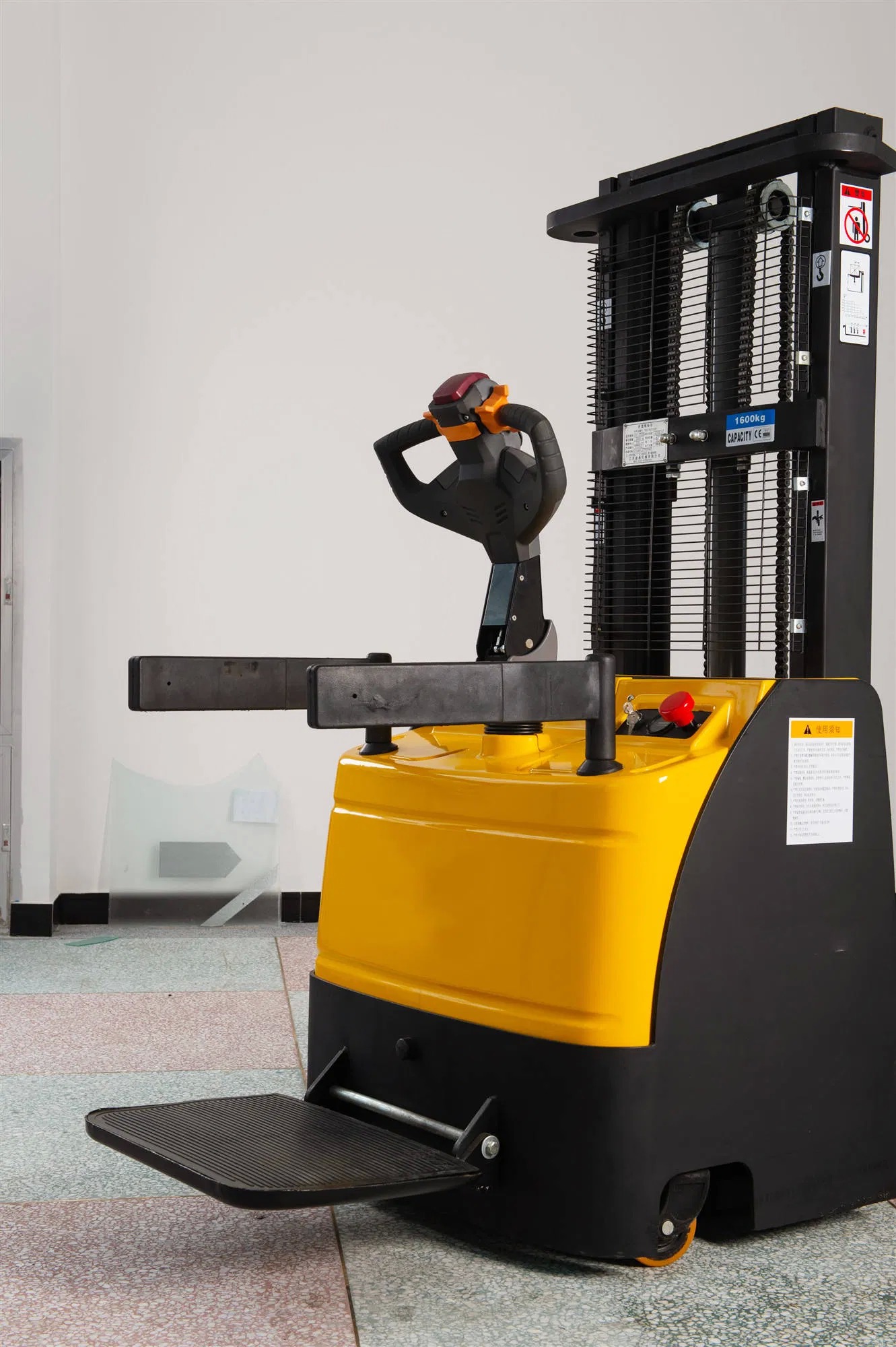

KAD Customized Leg Forklift 1600mm Electric Pallet Stacker

Full electric stackers are designed for loading, stacking, and short-distance palletizing of goods. Featuring a simple structure with flexible operation and excellent micro-control capabilities, these stackers offer high safety performance. Ideal for operations in narrow passages and confined spaces, they can access ship cabins, carriages, and containers for efficient pallet handling.

Product Specifications

Model	CDD1030	CDD1530
Load Capacity	1000 kg	1500 kg
Lifting Height	3000 mm	3000 mm
Load Center	500 mm	500 mm
Fork Size	1220×100×40 mm	1220×100×40 mm
Ground Clearance	30 mm	30 mm
Pedal Length	410 mm	410 mm
Handler Height	1490 mm	1490 mm
Outer Distance Between Forks	685 mm	685 mm
Inner Distance Between Forks	345 mm	345 mm
Tyre Type	Polyurethane	Polyurethane
Control Way	Handler	Handler
Speed Regulation Way	Stepless Speed Regulation	Stepless Speed Regulation
Min. Turning Radius	1500 mm	1500 mm
Driving Speed with Full Loads	4 km/h	4 km/h
Gradient	3°/5°	3°/5°
Battery	24V/210A	24V/210A
Driving Motor	1.2 KW	1.2 KW
Lifting Motor	2.2 KW	2.2 KW
Tyre Size	300/250 mm	300/250 mm
Overall Size	2170×1570×2100 mm	2170×1570×2100 mm
Weight	900 kg	900 kg
Reference Working Time	6 h	6 h
Increased Height Options	1600/2000/2500/3000/3500 mm	1600/2000/2500/3000/3500 mm
Max Height	2100/1600/1850/2100/2350 mm	2100/1600/1850/2100/2350 mm

Key Components

Control Handle

Domestic premium control handle with functional buttons for sensitive UP/DOWN and FORWARD/BACKWARD control.

Operation Panel

Features battery indicator, emergency switch, and functional keys with ergonomic design for comfortable operation.

Mast System

Strong cylinder and chain mechanism ensures smooth fork operation with optional 1-stage, 2-stage, or 3-stage mast configurations.

Main Features

Side-positioned drive system with robust casters for enhanced stability and maneuverability.

Frequently Asked Questions

Q1. What is your terms of packing?

A: Standard packaging includes paper wrapping and iron pallet. Custom branded packaging available with authorization.

Q2. What is your terms of payment?

A: Standard terms are 30% deposit with 70% balance before delivery. Product photos provided before final payment.

Q3. What is your terms of delivery?

A: Available delivery terms include EXW, FOB, CFR, CIF, and DDU.

Q4. How about your delivery time?

A: Typical lead time is 5-30 days after deposit receipt, depending on order specifications and quantity.

Q5. Do you test all your goods before delivery?

A: Yes, we conduct 100% quality testing prior to shipment.

Q6. How do you maintain long-term business relationships?

Consistent quality with competitive pricing
Customer-focused approach treating all clients as valued partners
