Lugar de origen: | PORCELANA |
---|---|
Nombre de la marca: | KAD |
Certificación: | CE |
Cantidad de orden mínima: | 1 |
Precio: | 1299-1500 |
Detalles de empaquetado: | Paleta de hierro + película de plástico |
Tiempo de entrega: | 7 días de trabajo |
Condiciones de pago: | L/C, D/A, D/P, T/T, Western Union, Moneygram |
Capacidad de la fuente: | 50 unidades al mes |
Resaltar: | glass vacuum lifting equipment,electric pallet stacker lifter,robot glass installation lifter |
---|

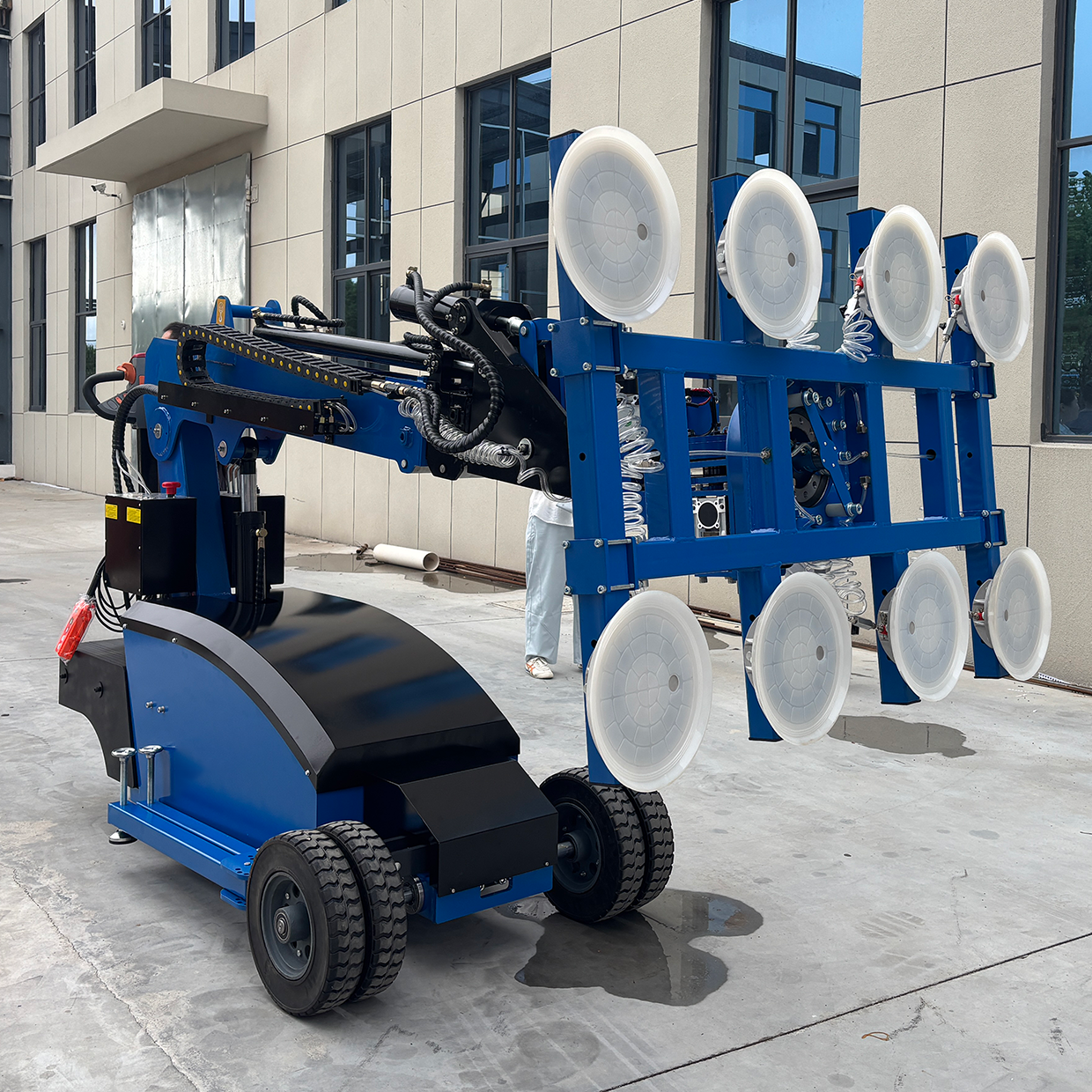

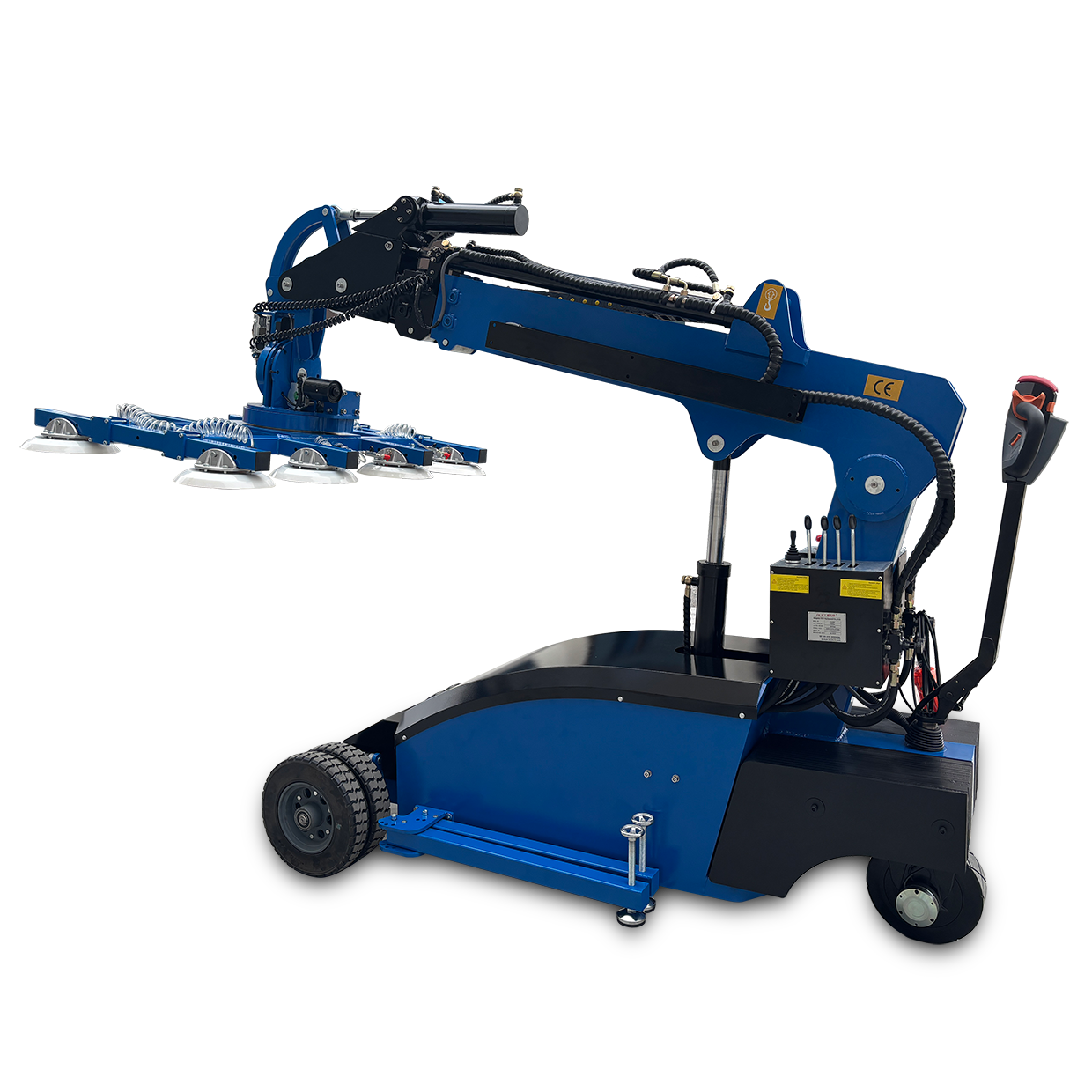

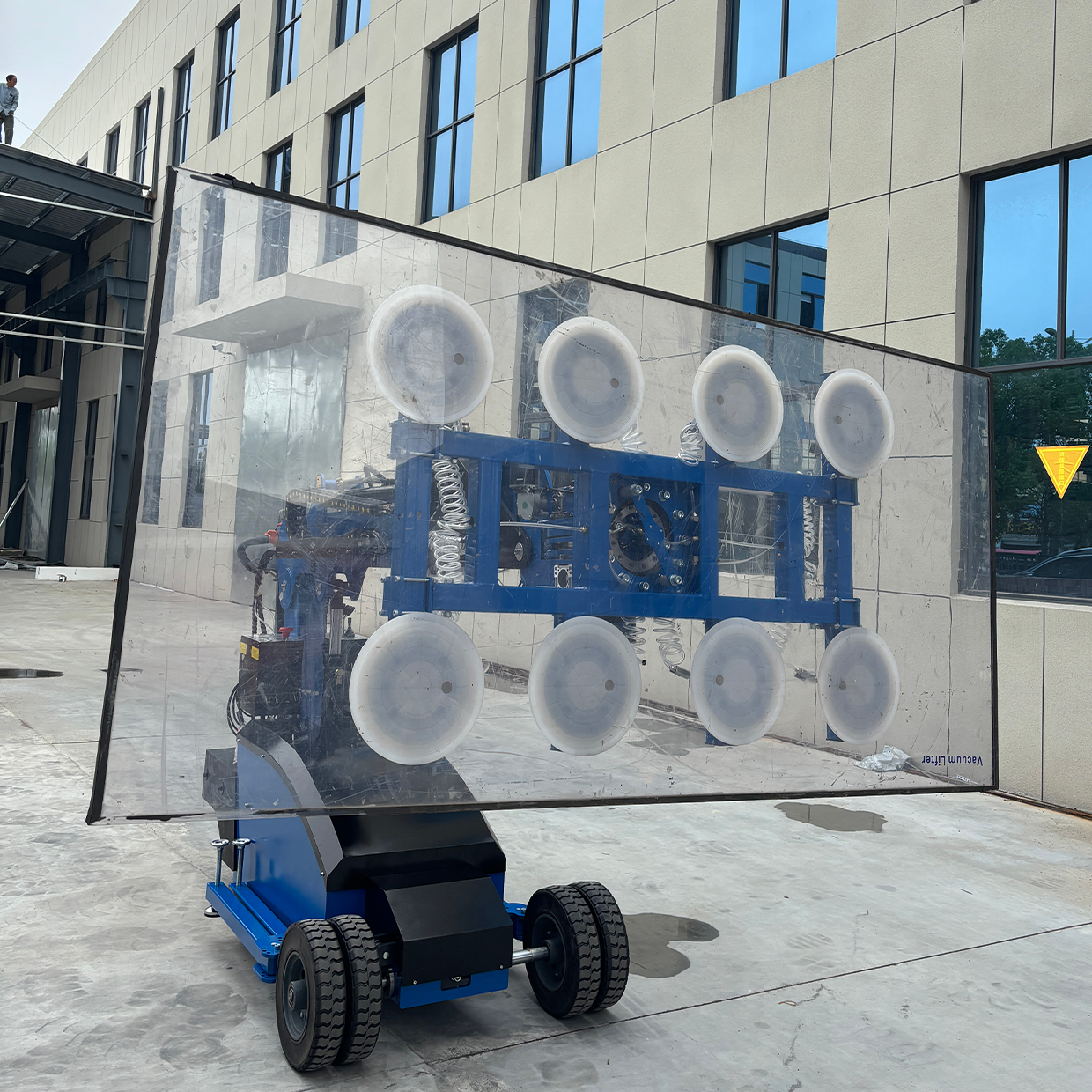

Our intelligent vacuum glass lifter is engineered to handle heavy and fragile materials with precision and safety. It is suitable for a wide range of applications, from glass installation and facade work to transporting metal, stone, and wooden panels. The ergonomic design makes operation simple and efficient, while essential safety features — such as a vacuum monitoring system, emergency stop, automatic braking, charging protection, counterweight balance, and reinforced support legs — provide maximum reliability. Often referred to as a glass handling robot, suction lifting vehicle, vacuum glazing system, or electric suction cup transporter, it offers a professional solution for demanding lifting and installation tasks.
Click here to get latest price
If you have any questions for this Semi electric heavy-duty circular clamp ,please contact me as below,i will stand by 24 hours.Thanks
Model
|
/
|
GL600/800
|
Driving mode
|
/
|
Front Axle Drive
|
Max.Load
|
kg
|
600 /800
|

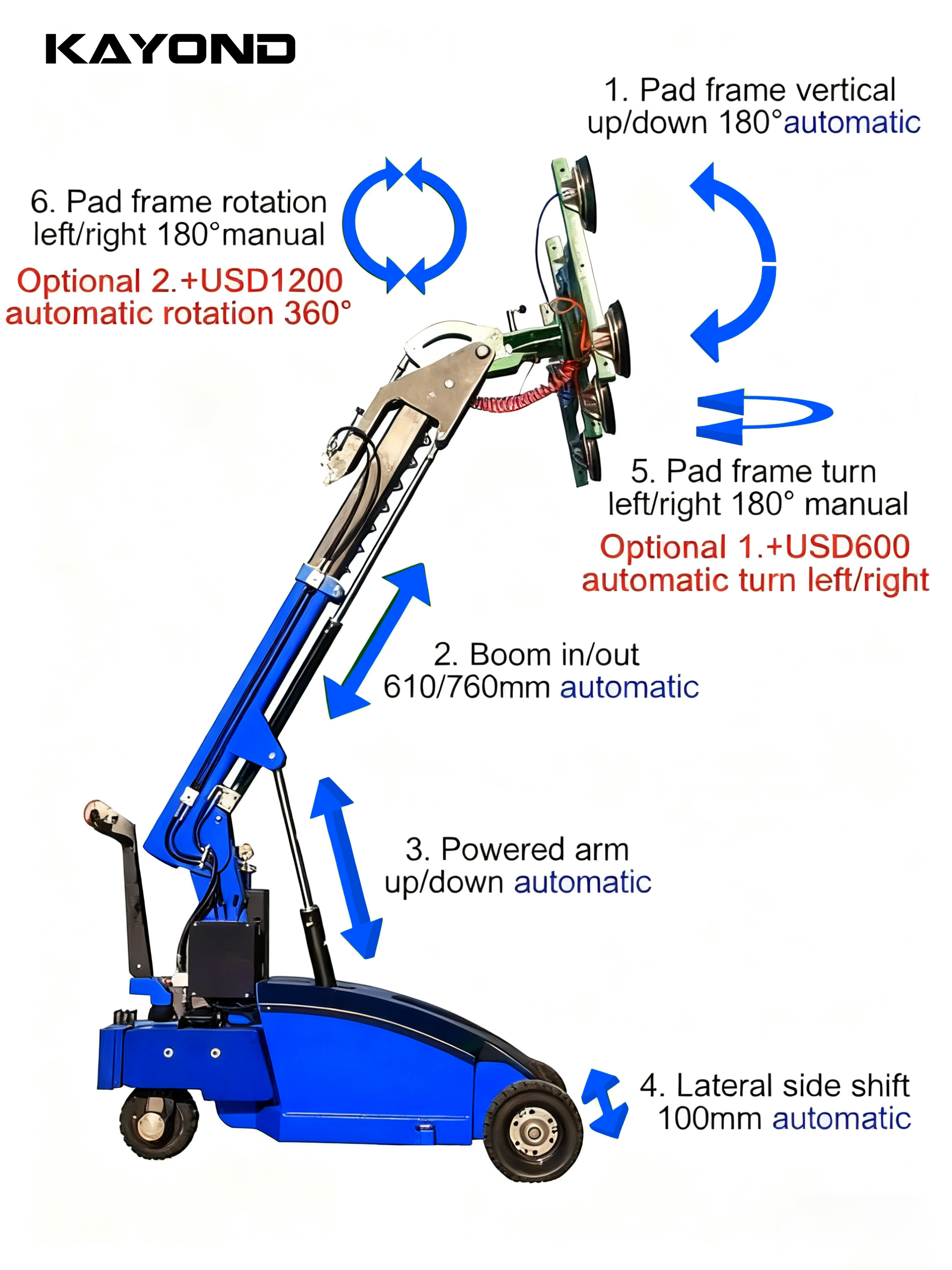

Rotating
|
°
|
Manual 360° (Automatic type for optional)
|
Turn to side
|
°
|
Manual 90° (Automatic type for optional)
|
Lifting Height
|
mm
|
3700 /4500/ 5000
|
Manipulation
|
/
|
Walkie Type
|
Power
|
/
|
Tractive-type Free Maintence Battery
|
Controling type
|
/
|
Stepless adjusting speed
|
Battery
|
V/Ah
|
2*12/120
|
Charger
|
V/A
|
24/18
|
Climbing gradient
|
%
|
15
|
Braking type
|
/
|
Electromagnetic braking
|
Driving Motor
|
V/W
|
24/2200 / 24/2500
|
Lifting Motor
|
V/W
|
24/2200
|
Packing Size
|
mm
|
2780*990*1750 / 3180*1100*1780
|
Packing Weight
|
kg
|
1850 / 2080
|
Front Wheel Size
|
mm
|
Φ466*195 (Pneumatic Tires)
|
Front Wheel Qty
|
pcs
|
2 ( 2+2 Dual wheel optional)
|
Rear Wheel Size
|
mm
|
Solid Φ400*100 ( Pneumatic tires for optional)
|
Rear Wheel Qty
|
pcs
|
2
|
Pads Size
|
mm
|
Φ300
|
Pads Qty
|
pcs
|
6/8
|
