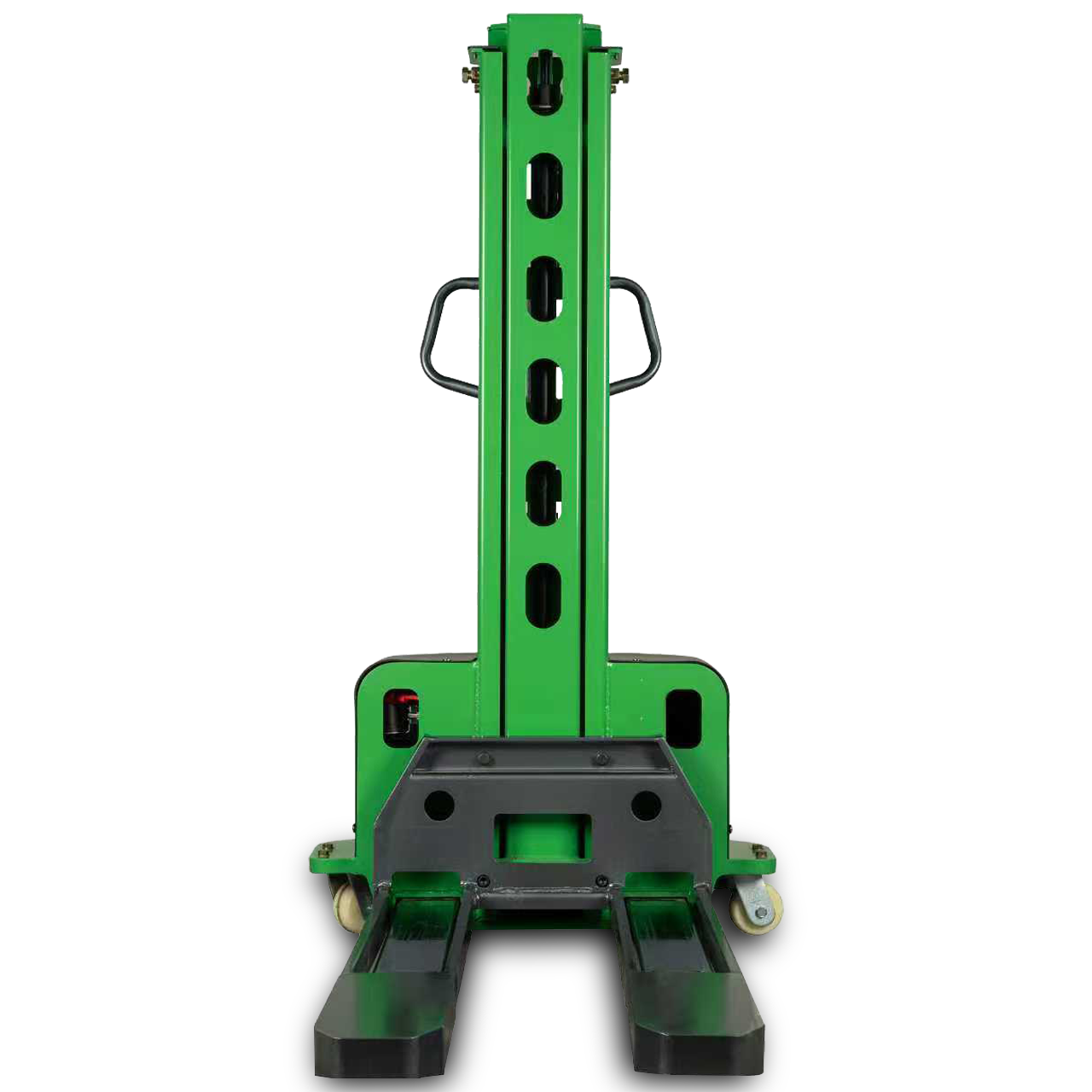

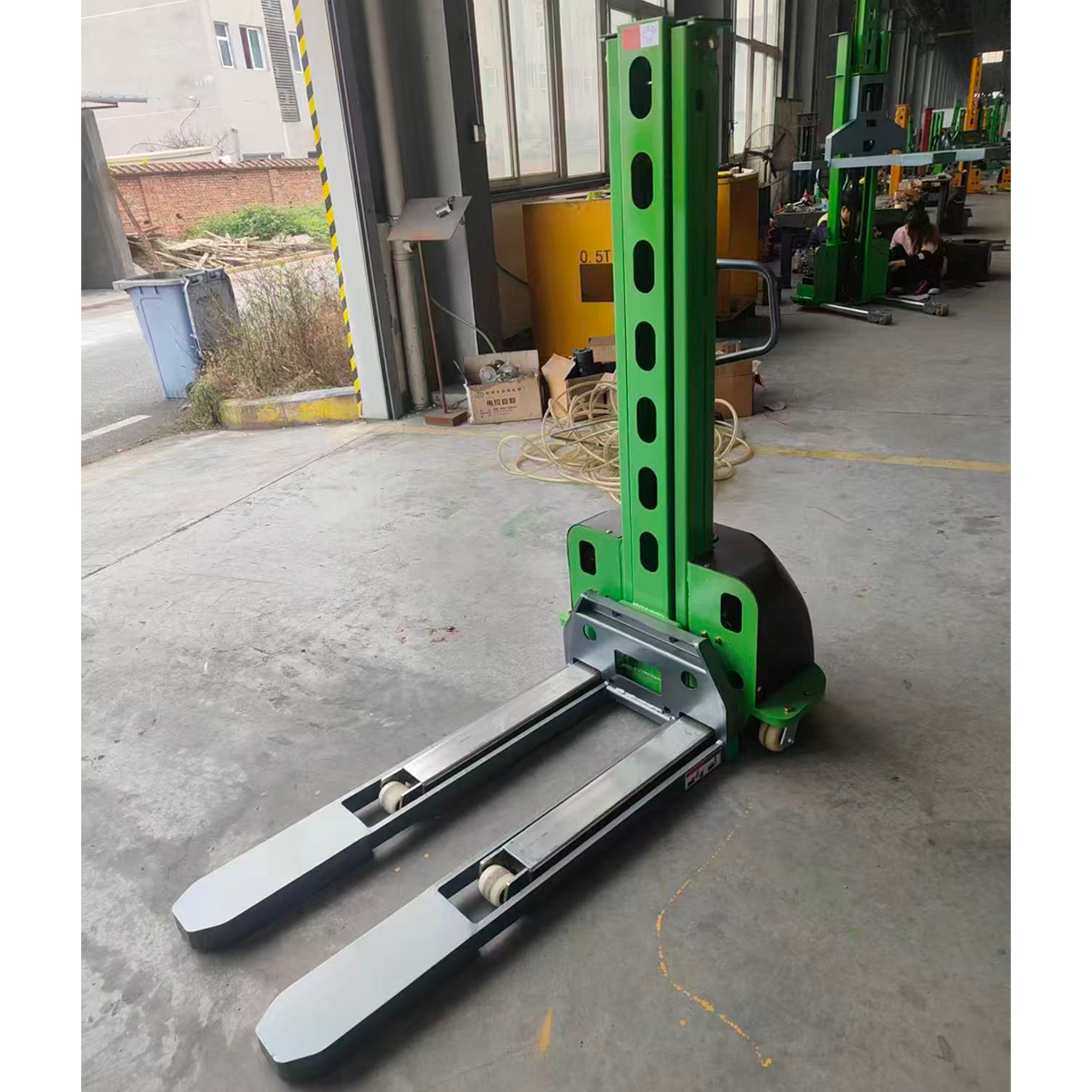

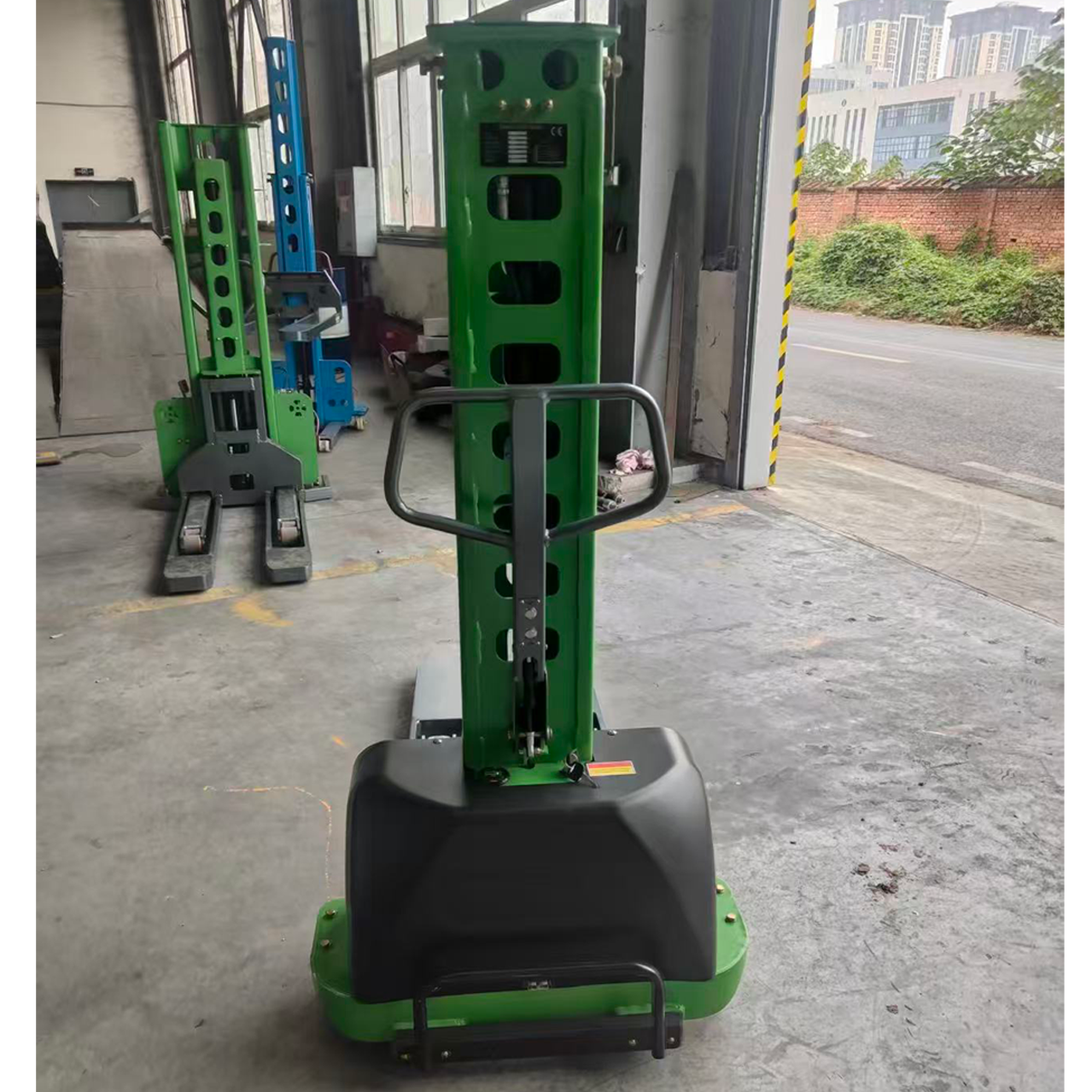

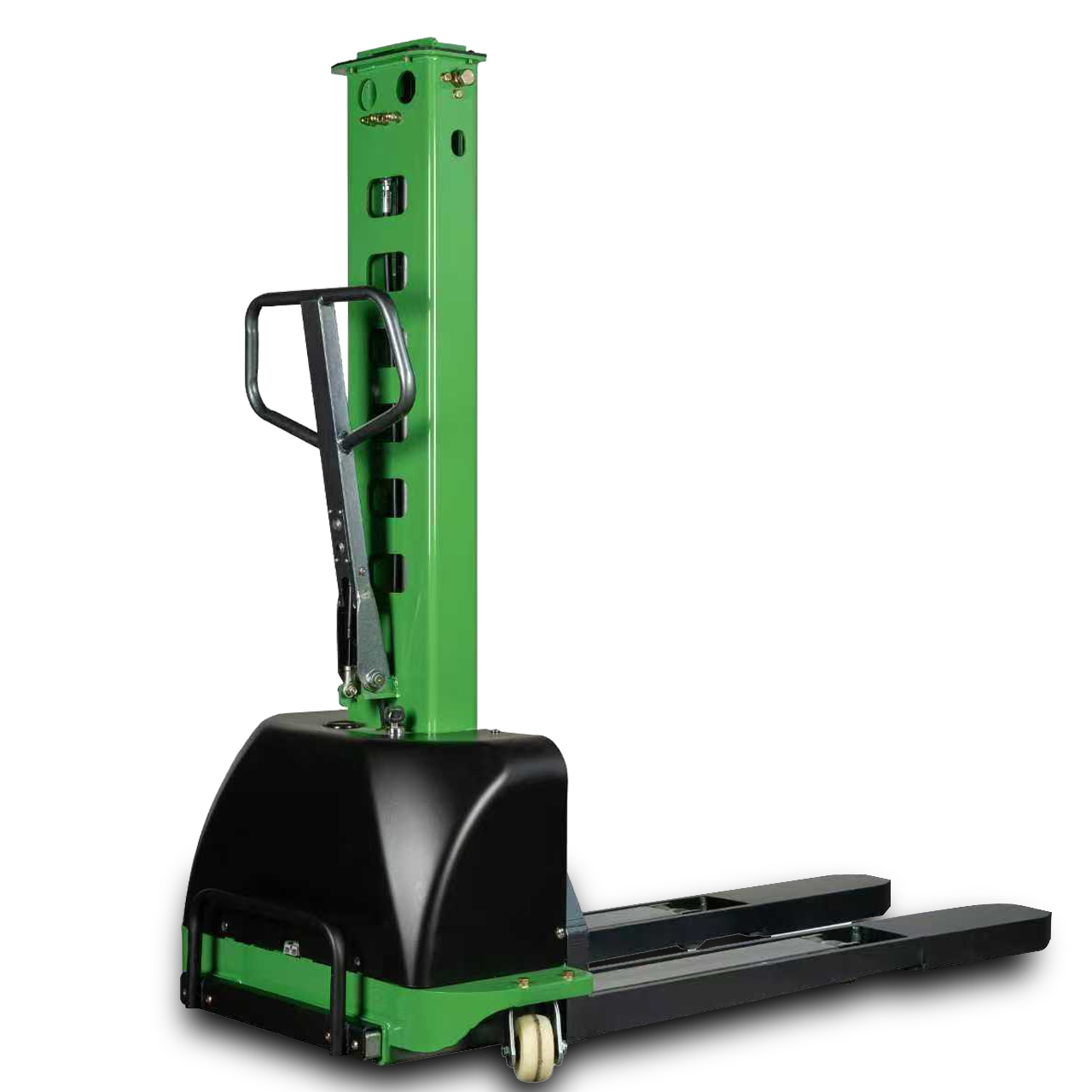

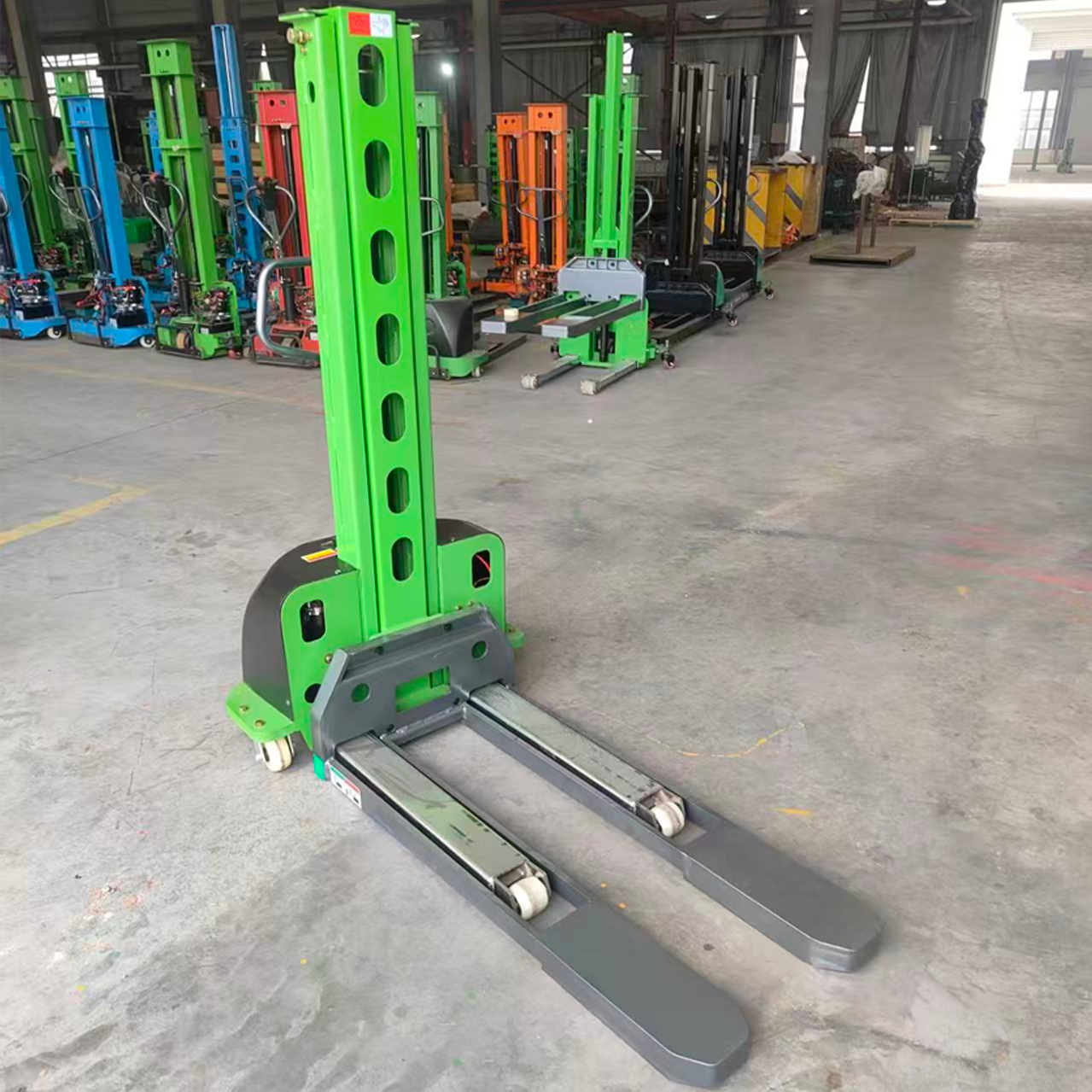

High Quality Semi-electric Loading Stacker 1000kg Capacity 1.3m/1.6m Lifting Height Precision Model for Warehouse & Logistics

Informacion basica

Lugar de origen:	Porcelana
Nombre de la marca:	KAD
Certificación:	CE/ISO9001
Número de modelo:	CDD05C

Cantidad de orden mínima:	1
Precio:	$1000
Detalles de empaquetado:	Paleta de hierro + película de plástico
Tiempo de entrega:	7 días de trabajo
Condiciones de pago:	LC, D/A, D/P, T/T, Western Union
Capacidad de la fuente:	50 unidades al mes

Mejor precio Contactar ahora

Modelo NO.:	CDD05C	Capacidad de carga:	1T
Centro de carga:	500 mm	Altura de elevación:	1600 mm
Capacidad de la batería:	24v/210Ah	Tamaño de la bifurcación:	122010040 mm
Distancia al suelo:	30mm	Radio de giro:	1500 mm
conducción de velocidad:	4km/h	Pendiente:	3°/5°
Motor de conducción:	0,8 kw	Motor de elevación:	0,8 kw
Tamaño de neumático:	300/250 mm	Tamaño total:	1570786/9361150mm
Peso:	215 kilos
Resaltar:	semi-electric pallet stacker 1000kg capacity , electric loading stacker 1.6m lifting height , warehouse stacker with warranty

High Quality Semi-electric Loading Stacker 1000kg Capacity 1.3m/1.6m Lifting Height Precision Model for Warehouse & Logistics

The wide-view mast and smooth vehicle shape, with multi-curved cover parts, unrestricted vision and improved working efficiency; the H-channel steel mast is resistant to bending and torsion, strong and durable, ensuring the vehicle's load capacity; the maintenance-free AC motor minimizes maintenance costs; the standard integrated handle integrates multiple functions for quick and easy operation; the front cover is easy to disassemble and various components are centrally arranged to make maintenance faster and smoother.
advantage:

1. All-Alloy-Steel Construction (High Strength & Rigidity)
2. Hydraulic Operation (Enhanced Reliability & Durability) 3.Lightweight Design (Improved Maneuverability)
4.High-Efficiency Gear Pump & Motor (Energy-Saving)
5.Independent Power & Gravity Modes (Gravity Mode for Zero-Power Descent & Extended Range)
6.Chrome-Plated Finish (Excellent Corrosion/Wear Resistance, Maintains Smooth Telescopic Action)

If you have any questions about this Semi-Electric Self-loading Stacker, please feel free to contact me via the following methods. I will be on call 24 hours a day. Thank you.

Model		CDD05C	CDD07Z	CDD10Y
Type of Power		Battery	Battery	Battery
Max. Load	kg	500	700	1000
Load Center	mm	400	400	400
Wheelbase	mm	815	788	780
Wheel Distance: FR	mm	380	405	398/518
Wheel Distance: RR	mm	665/815	690/810	708/928
Type of Operation		Walk	Walk	Walk
Front Wheel	mm	Φ70×60	Φ80×60	Φ70×60
Universal Wheel	mm	Φ100×45	Φ100×50	Φ100×50
Middle Wheel	mm	Φ45×26	Φ65x30	Φ65×30
Length of Outriggers	mm	746	735	780
Max. Fork Height	mm	800/900/1000/1100/1200/1300/1500/1600	800/900/1000/1100/1200 /1300/1500/1600	800/900/1000/1100/1200 /1300/1500/1600
External Distance Between Forks	mm	535/685	565/685	565/(685)
Length of Fork	mm	1150	1150	1150
Thickness of Fork	mm	60	60	60
Width of Fork	mm	155	190	193
Overall Length	mm	1570	1552	1544
Overall Width	mm	786/936	809/929	835/955
Overall Height (Mast Closed)	mm	1150/1207/1307/1407/1507/1607/1807/1907	1155/1255/1355/1455/1555/1655/1855/1955	1166/1266/1366/1466/1566 /1666/1866/1966
Overall Height (Max. Fork Height)	mm	1870/2070/2270/2470/2670/2870/3270/3470	1875/2075/2275/2475/2675/2875/3275/3475	1850/2050/2250/2450/2650 /2850/3250/3450
Lifting speed	mm/s	55	55	55
Descent speed	mm/s	80	100	100
Lift Motor Power	kw	0.8	0.8	1.6
Battery Voltage	v	12	12	12
Battery Voltage	Ah	52	52	52
Battery Weight	kg	13.5	13.5	13.5
Total Weight(Include Battery)	kg	214/218/223/228/233/240/255/260	243/247/251/255/259/263/272/276	285/290/295/300/305 /310/319/324

High Quality Semi-electric Loading Stacker 1000kg Capacity 1.3m/1.6m Lifting Height Precision Model for Warehouse & Logistics 1
