| Lugar de origen: | Porcelana |
|---|---|
| Nombre de la marca: | KAD |
| Certificación: | CE |
| Número de modelo: | CPD2030 |
| Cantidad de orden mínima: | 1 unidad |
| Precio: | $7100-$7300 /unit |
| Detalles de empaquetado: | Paleta de hierro + película de plástico |
| Tiempo de entrega: | 15 días laborables |
| Condiciones de pago: | LC, D/A, D/P, T/T, Western Union |
| Capacidad de la fuente: | 50 unidades al mes |
| Nombre del producto: | Cuatro ruedas para apilar rollos de papel | Color: | Rojo/Personalizado |
|---|---|---|---|
| Centro de carga: | 500 mm | Peso de carga: | 1500-3000kg |
| Alturas de carga: | 3000 mm | Llantas: | neumático de núcleo sólido |
| Resaltar: | 2.5 ton electric forklift with clamp,full electric forklift big battery,paper roll stacker high efficiency |
||

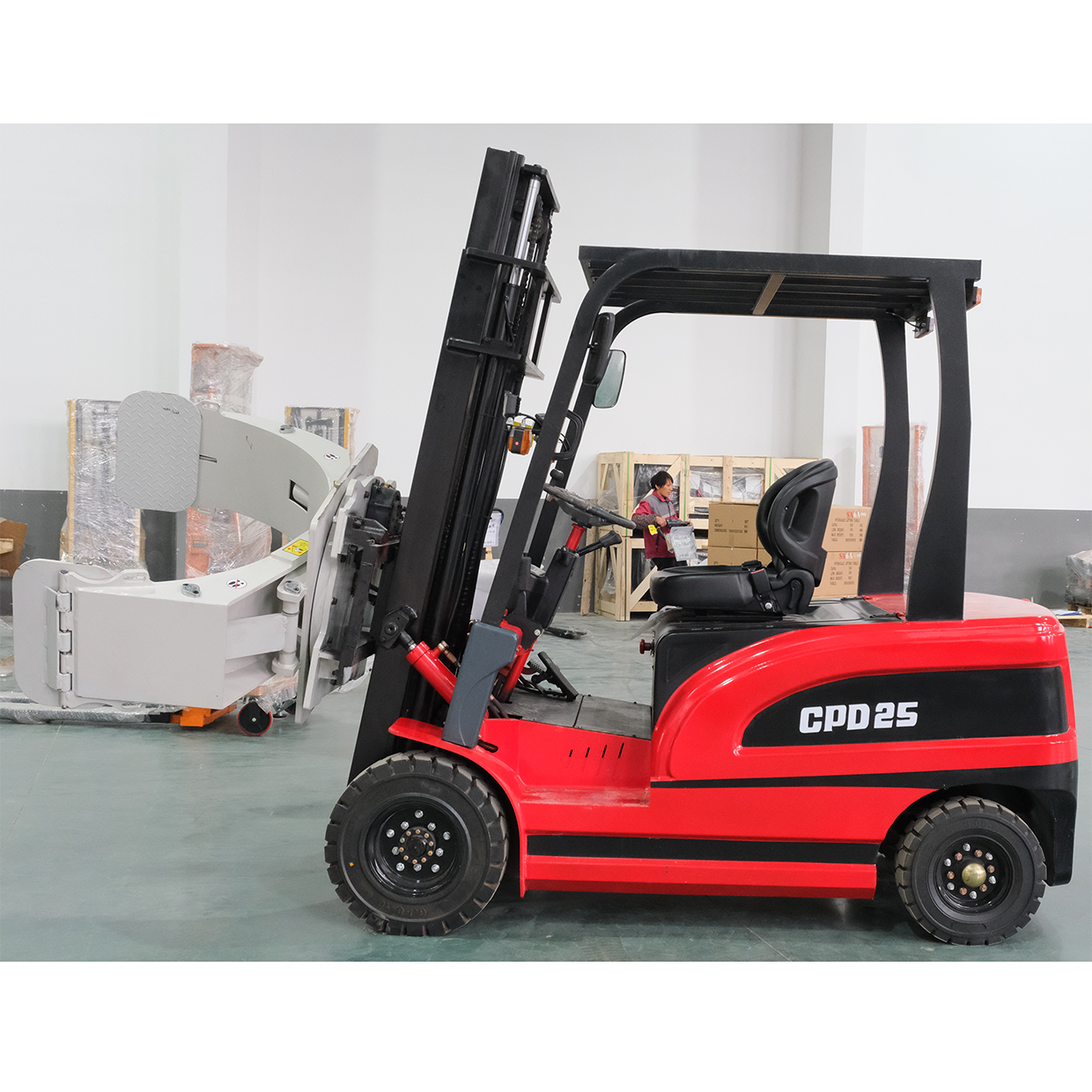

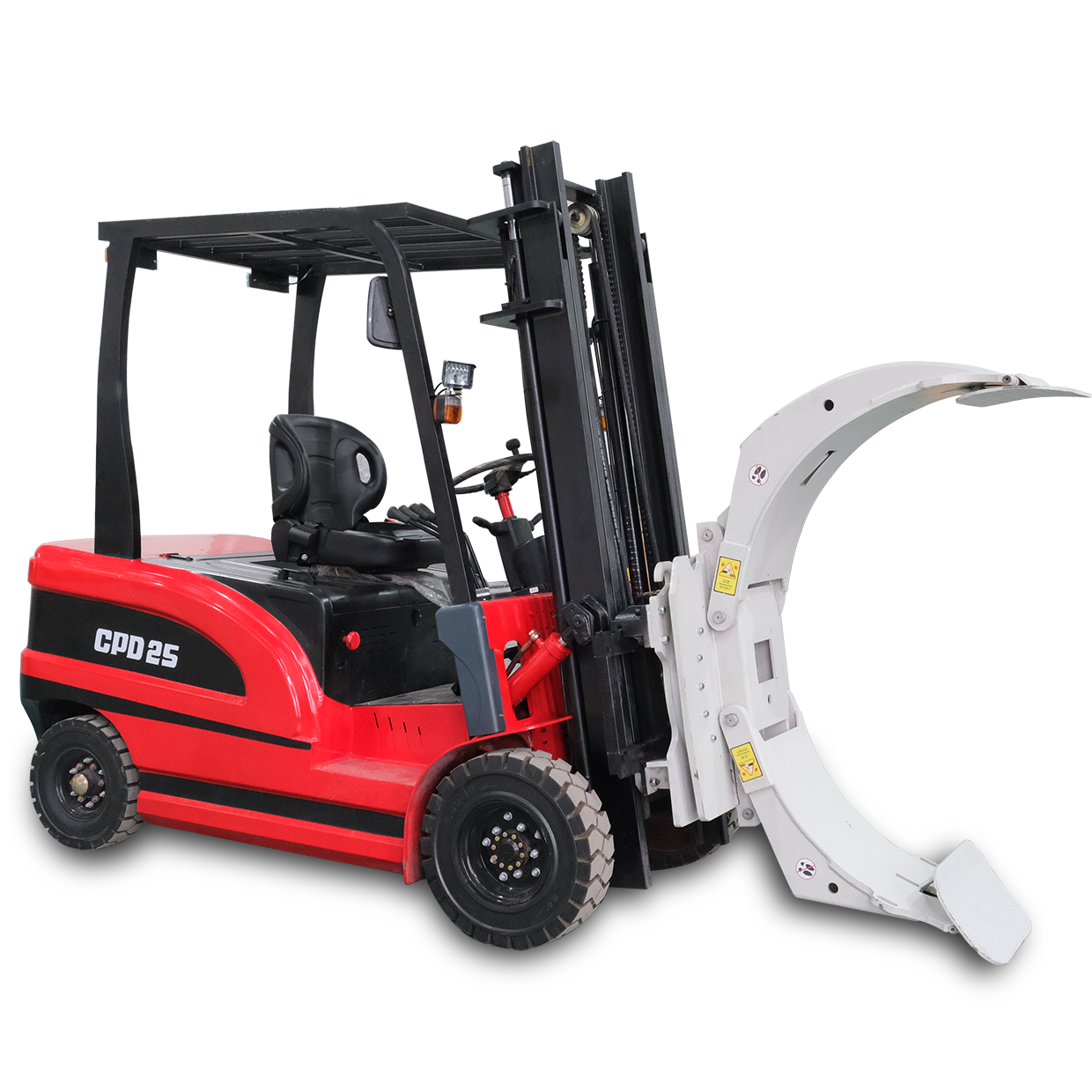

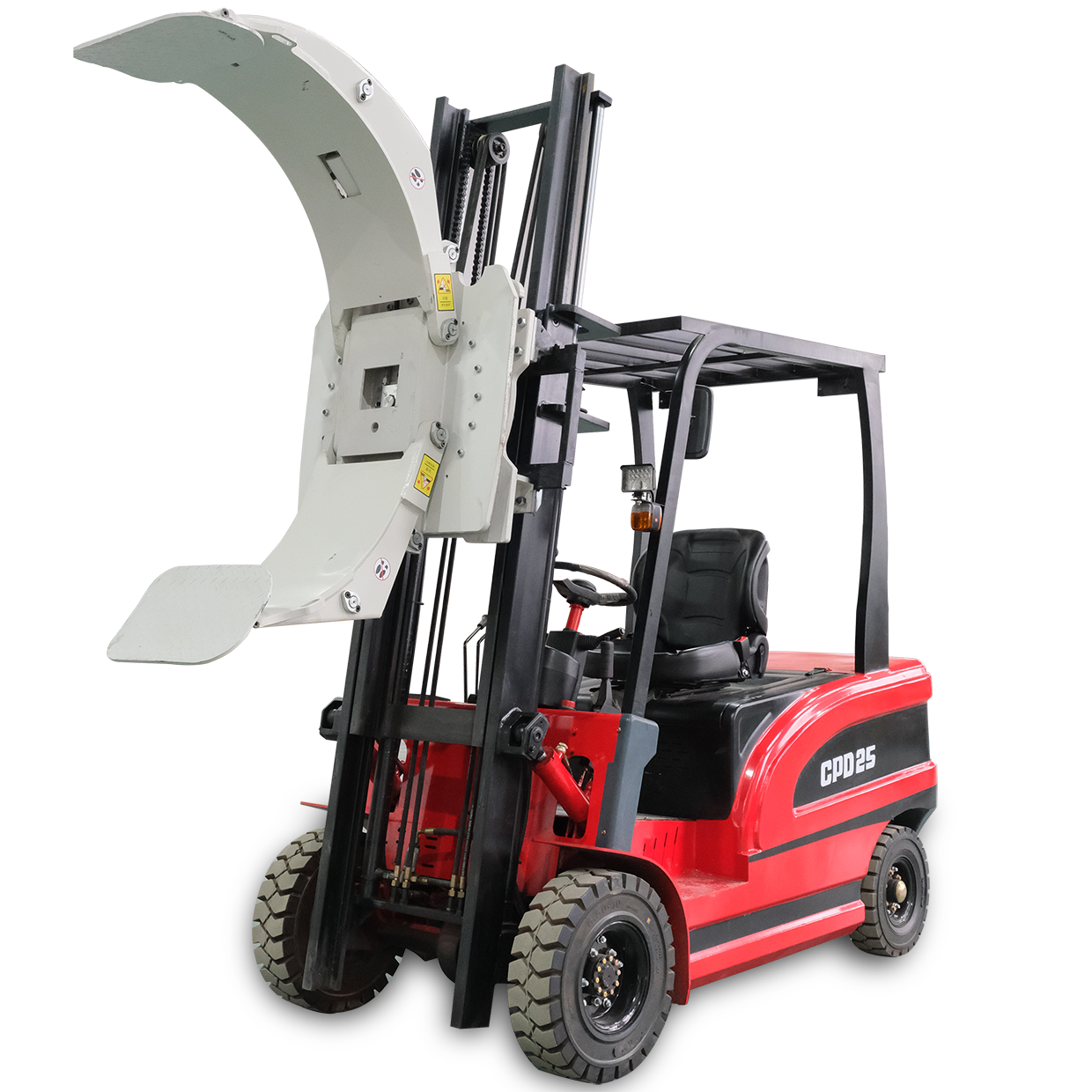

Four Wheel Electric Forklift 2.5 Ton 2500kg with Clamp Attachment Full Electric Big Battery High Efficiency Operation
The 4-wheel electric forklift truck equipped with a paper roll clamp boasts numerous advantages. It offers exceptional maneuverability and stability, ensuring safe and efficient handling of paper rolls. The electric power source ensures low noise and zero emissions, making it environmentally friendly. The paper roll clamp provides secure and versatile clamping capabilities, enabling the forklift to easily pick up, transport, and stack various sizes of paper rolls. Its compact design and high lifting capacity make it an ideal choice for warehouses, factories, and printing shops, enhancing productivity and reducing labor costs.
![]()
![]()
![]()
1.It is suitable for holding goods, rotating, raising and placing.
2.Suitable for cylindrical goods such as paper drum, paper roll, cloth roll, cable, cable, tire, oil drum, wood, etc.
3.It can rotate 180 degrees or 360 degrees electrically.
4.Clamping diameter and lifting height can be designed according to customer's goods and requirements.
|
Model
|
|
CPD1530
|
CPD2030
|
CPD3030
|
|
Load Capacity
|
kg
|
1500
|
2000
|
3000
|
|
Lifting Height
|
mm
|
3000
|
3000
|
3000
|
|
Load Center
|
mm
|
500
|
500
|
500
|
|
Fork size
|
mm
|
1070*100*40
|
1220*120*60
|
1220*120*60
|
|
Ground Clearance
|
mm
|
60/130
|
80/130
|
80/130
|
|
Tyre Type
|
|
solid Tyres
|
solid Tyres
|
solid Tyres
|
|
Control Way
|
|
Steering Wheel
|
Steering Wheel
|
Steering Wheel
|
|
Speed Regulation Way
|
|
Stepless Speed Regulation
|
Stepless Speed Regulation
|
Stepless Speed Regulation
|
|
Protection Guard Height
|
mm
|
2000
|
2100
|
2100
|
|
Mast Tilt Angle (Front/Rear)
|
(°)
|
3.0/6.0
|
3.0/6.0
|
3.0/6.0
|
|
The Min.Turning Radius
|
mm
|
1750
|
2100
|
2150
|
|
Driving Speed with Full Load
|
km/h
|
6
|
15
|
15
|
|
Maximum Gradient with full load
|
°
|
5°/8°
|
15
|
15
|
|
Battery
|
V/Ah
|
48/140
|
60/280
|
48/420
|
|
Driving Motor
|
kw
|
3
|
5
|
5
|
|
Lifting Motor
|
kw
|
3
|
5
|
5.5
|
|
Tyre Size (Front/ Rear)
|
mm
|
400/400
|
22x7-12/18x7-8
|
22x7-12/18x7-8
|
|
Overall dimensions(L*W*H)
|
mm
|
3000*1030*2100
|
3450*1100*2100
|
3750*1160*2100
|
|
Weight
|
kg
|
2200
|
3000
|
3800
|
|
Reference Working Time
|
h
|
4/6
|
4/6
|
4/6
|
|
Increased height each tonnage
|
mm
|
1600/2000/2500/3000/3500
|
||
|
Max height
|
mm
|
2100/1600/1850/2100/2350
|
||
Function of electric four-wheeled forklift with holding clamps
Electric four-wheeled ride-on fully automatic holding clip flip lift forklift can hold cloth rolls, paper rolls type, etc.. Battery all-electric clamping flip forklift can be automatic lifting, it can be 360 degrees rotating flip, left and right rotating clamping.
Clamping forklift truck it is in the traditional forklift upgraded and transformed, can be more convenient, efficient extraction of goods with cylinder, reduce the labor intensity of the staff.
Electric clamping forklift can quickly grab, carry and flip the workpiece, thus greatly improving the production efficiency. The forklift can precisely control the position and angle of the workpiece, thus improving the quality stability of the product.
