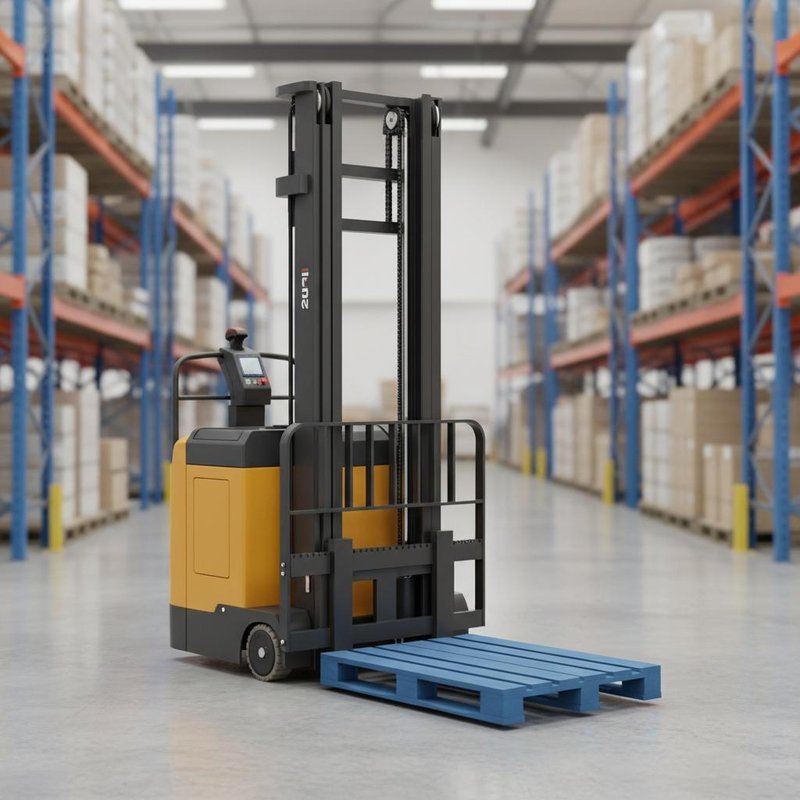

2 Ton Capacity 3 Meter Lift Height Full Electric Pallet Stacker for Warehouse Use

Informacion basica

Lugar de origen:	Porcelana
Nombre de la marca:	KAD
Certificación:	CE
Número de modelo:	CDD15

Cantidad de orden mínima:	1 unidad
Precio:	＄1200-＄1400 /unit
Detalles de empaquetado:	Paleta de hierro + película de plástico
Tiempo de entrega:	10 días laborables
Condiciones de pago:	LC, D/A, D/P, T/T, Unión Occidental
Capacidad de la fuente:	500 unidades al mes

Mejor precio Contactar ahora

Color:	Rojo/Personalizado	Nombre del producto:	Carretilla elevadora eléctrica
Centro de carga:	500 mm	Capacidad de carga:	1000-1500kg
Alturas de carga:	3000 mm	Característica:	Alta eficiencia
Capacidad de la batería:	48V/32Ah
Resaltar:	2 ton electric pallet stacker , 3 meter lift height stacker , full electric warehouse pallet stacker

Double Lift 2ton 3meters Full Electric Light Weight Stacker With Safe Arms For Warehouse Use

Product Overview

Boost warehouse efficiency with our Full Electric Initial Lift Stacker, designed for smooth and effortless pallet handling. Featuring a 3-meter lifting height and dual load capacity options (1.5T & 2T), this electric stacker ensures reliable performance in logistics, manufacturing, and storage operations.

Key Advantages

Full electric operation - No manual effort required, reducing worker fatigue
3m lifting range - Ideal for medium-to-high stacking tasks
1.5T/2T load capacity - Versatile for various pallet weights
Stable & durable - Robust construction for long-term industrial use
Easy maneuverability - Compact design for narrow aisles

Technical Specifications

Specification	Unit	Value
Power source		Battery
Rated load	kg	1500/2000
Load center	mm	500
Operation way		Standing operation, electric lifting, electric gripper, manual moving
Turning radius	mm	1500
Aisle width	mm	2560/2495
Length	mm	2040
Width	mm	830
Height	mm	2100
Mast		Two-Stage Mast
Max lifting height	mm	3000
Min height of forks	mm	200
Running speed (load/unload)	km/h	4.0/5.0
Hoisting speed (load/unload)	mm/s	0.08/0.135
Descent speed (load/unload)	mm/s	0.105/0.097
Climbing capability	%	5/10
Braking mode		Electromagnetism
Tyres, material		Polyurethane
Load wheel dimensions	mm	80 × 70, 2pcs
Battery	v/ah	48/32
Weight	kg	620/750
